Project: 2012 DGM WRX

[FlaakCM]

If I had to do it all over again with a turbo Subie, it would be real simple (especially with the improvements they have made over the years since I owned mine):
Full exhaust
Intake
Fuel pump
Meth / Water injection
A tune
Better tires and maybe some springs.

That's really all you need to have stupid fun with those cars.

Would you stay on the stock IC or upgrade to a FMIC?

[FlaakCM]

Nice choice on the third brake light. I've always loved the edm/jdm rear fog or third brake lights.

Thanks.

I am still undecided on whether to wire it as a brake light or as an additional taillight (to remain on when the lights are on)

[WRXtranceformed]

If I had to do it all over again with a turbo Subie, it would be real simple (especially with the improvements they have made over the years since I owned mine):
Full exhaust
Intake
Fuel pump
Meth / Water injection
A tune
Better tires and maybe some springs.

That's really all you need to have stupid fun with those cars.

Would you stay on the stock IC or upgrade to a FMIC?

I don't know enough about the newer WRXs to comment. On the older ones, I probably would have left it alone honestly. The stock one really didn't suck and the meth would allow that system to run super safe and awesome.

Edit: I just saw that you asked about a FMIC. I would never upgrade to a FMIC unless you were going to push serious hp.. I had a beefy TurboXS TMIC when my old WRX was stage 4.

[FlaakCM]

Edit: I just saw that you asked about a FMIC. I would never upgrade to a FMIC unless you were going to push serious hp.. I had a beefy TurboXS TMIC when my old WRX was stage 4.

I had been looking at the Process West TMIC if i ever wanted to upgrade the IC. However, Im not really sure as to the benefit it might give me other than the standard improvments moving to a larger/thicker core. 1K is hard to justify in cost.

[JPolen01]

Nice choice on the third brake light. I've always loved the edm/jdm rear fog or third brake lights.

Thanks.

I am still undecided on whether to wire it as a brake light or as an additional taillight (to remain on when the lights are on)

I vote for wire it as a taillight to remain on with the others. Something about that extra light just looks so good. Plus juan for staying with the top mount. FMIC are all for looks unless you are pushing serious power. It does look cool though.

[FlaakCM]

I vote for wire it as a taillight to remain on with the others. Something about that extra light just looks so good.

I believe that is exactly what I am going to do. the only other thing i have been debating is whether or not to tint the housing so it doesnt stand out when it isnt on, but is clearly seen when the light is on. I would just use tinted Lamin-x so it is removable instead of using dark shades tinting spray.

[WRXtranceformed]

Edit: I just saw that you asked about a FMIC. I would never upgrade to a FMIC unless you were going to push serious hp.. I had a beefy TurboXS TMIC when my old WRX was stage 4.

I had been looking at the Process West TMIC if i ever wanted to upgrade the IC. However, Im not really sure as to the benefit it might give me other than the standard improvments moving to a larger/thicker core. 1K is hard to justify in cost.

I would stick with the TMIC if you ever decide to upgrade and keep the turbo stock or close to stock size (like a VF34 if kids still use those nowadays). My buddy had an FMIC on his stock turbo / tuned WRX and it just made it a little laggier. I had one for the GT35R on my old STi, but that's a different situation altogether.

[FlaakCM]

i'd say so. the GT35R is a larger turbo. Wish i couldve seen that beast.

The current stock WRX turbos are VF52 and the current stock STi turbos are VF48.

[WRXtranceformed]

You still can if you ever catch Travis (KPWSerpiente) here on the east coast

[FlaakCM]

Stopped by MachV today and picked up a Kartboy Pitch Stop Mount.

[FlaakCM]

Well, I ended up being called in this weekend to fix an issue we were having with the servers and pulled a 27 hour shift. :roll:

I decided to take today off and sleep in. While I was home, I decided that I would install the new Kartboy Pitch Stop Mount. Install was fairly easy, except that one bolt was giving me trouble trying to take it off.

Below are the pictures of the install:

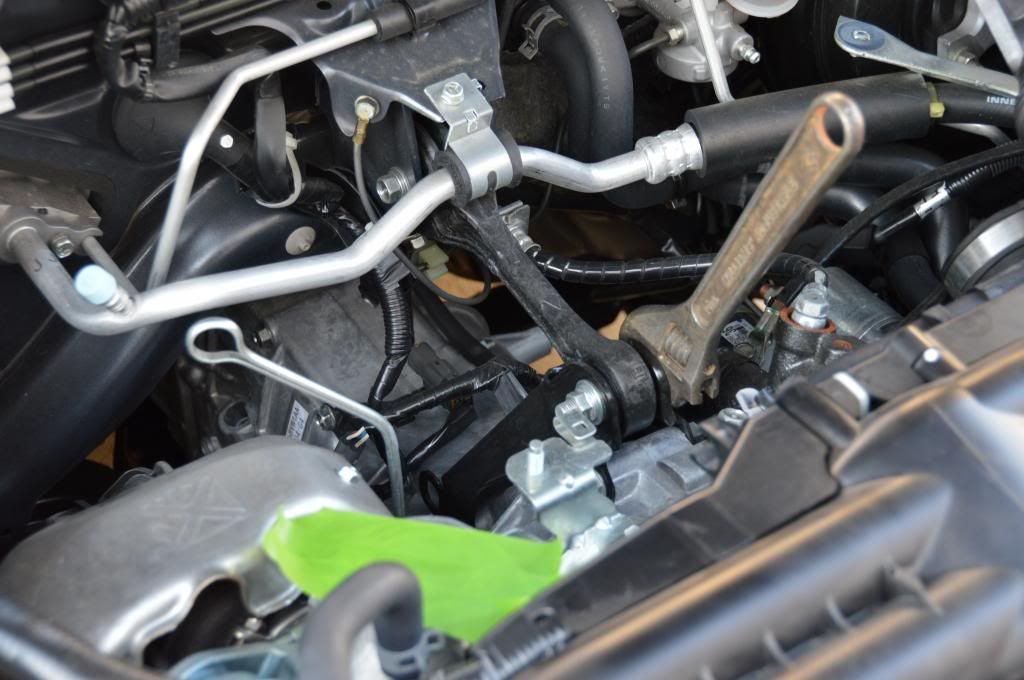

First I had to remove the by-pass valve (BPV) and the Top Mount Intercooler (TMIC)

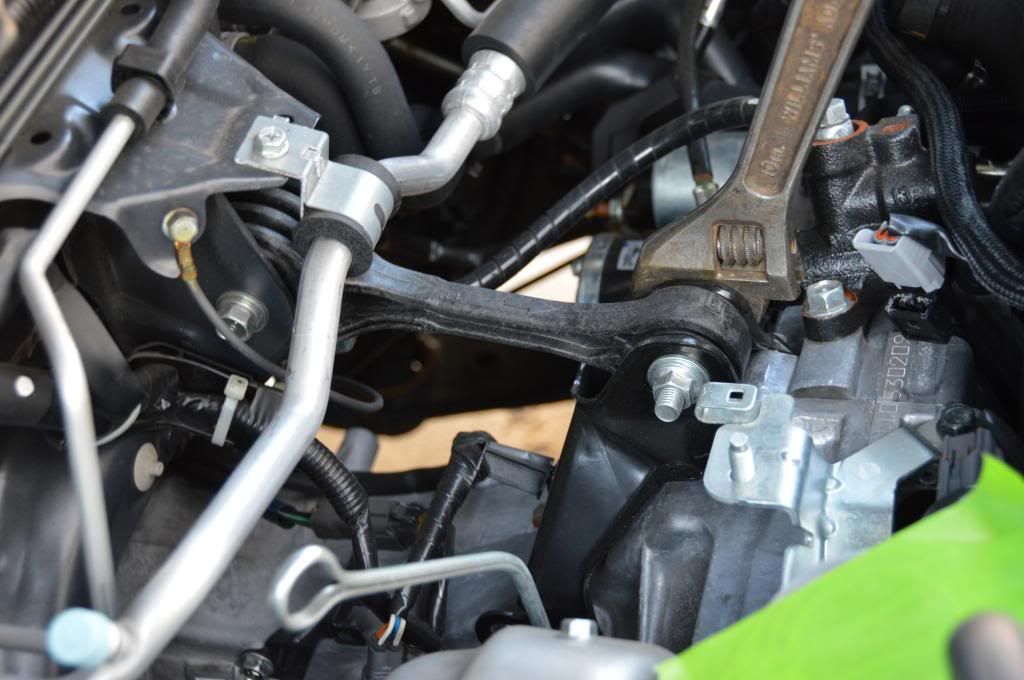

The pitch stop mount is located right below the TMIC

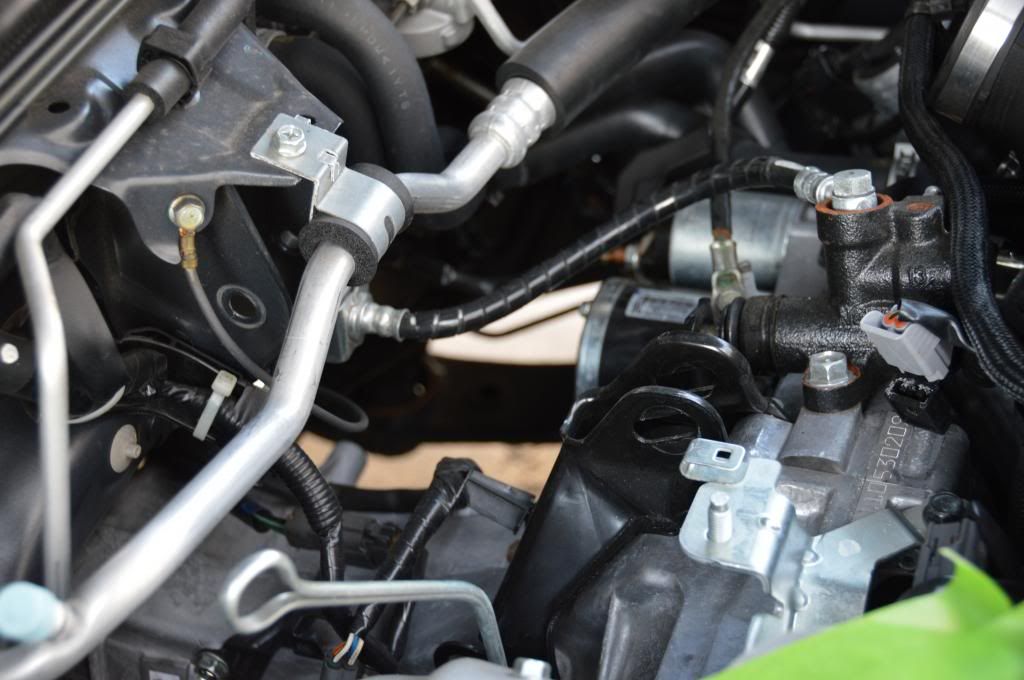

Once the bolts are removed, you can easily pull out the stock pitch stop mount

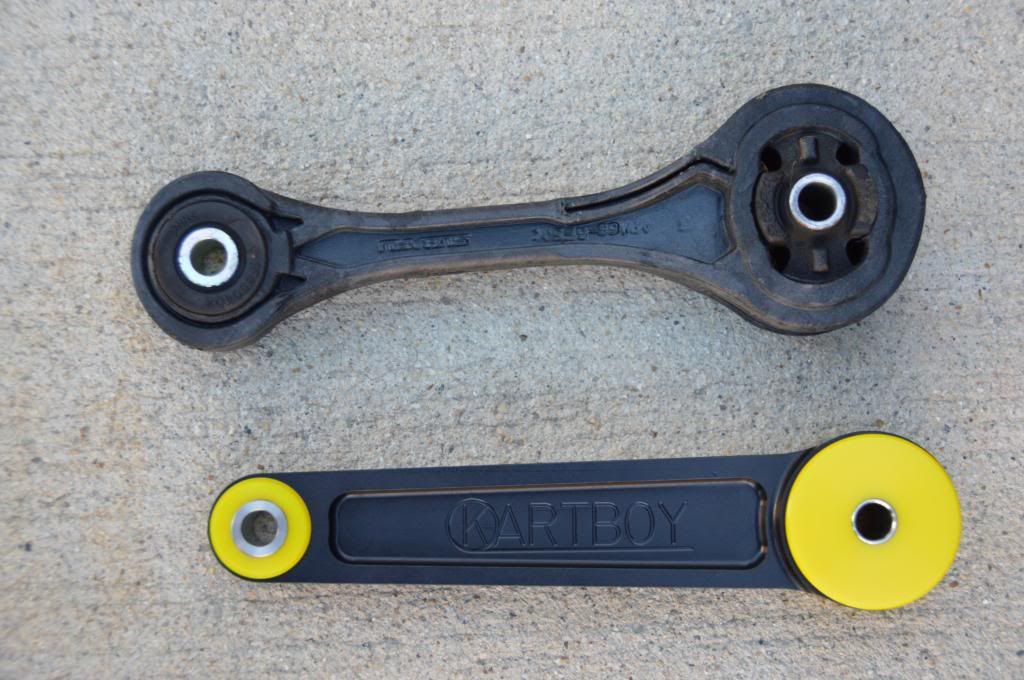

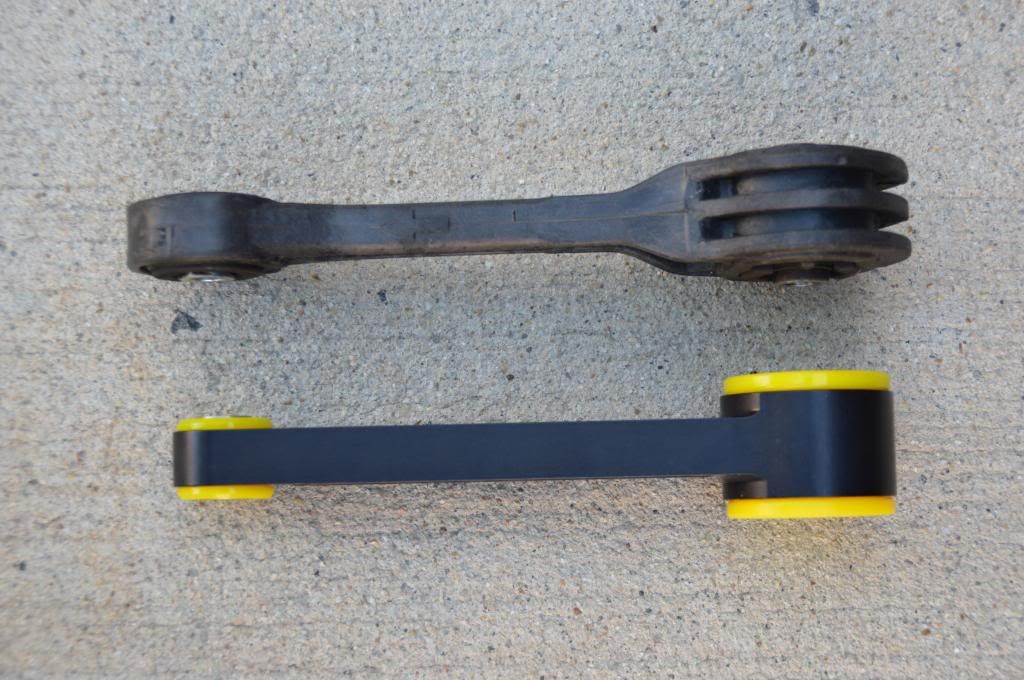

Here a few photos of the stock pitch stop and the Kartboy pitch stop

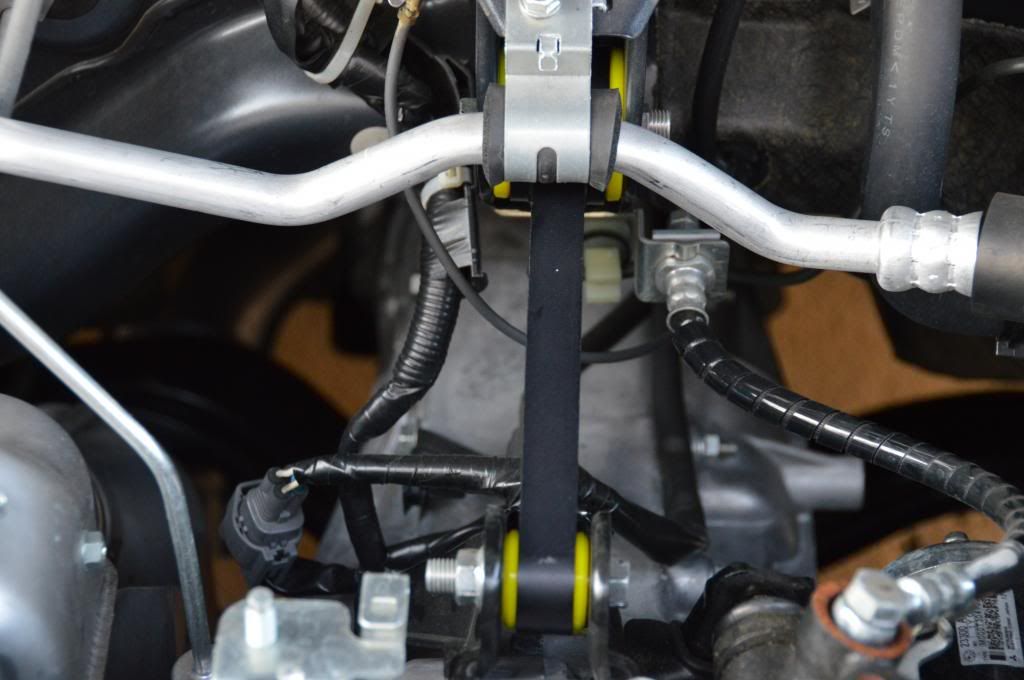

Installation is the reverse of removing the original



After the Kartboy Pitch Stop Mount is in, just reinstall the TMIC and the BPV.

All and all, the install only took about 45 mins.

I havent taken the car out yet to test how it feels. But I will post some reviews after a bit of driving. :mrgreen:

[FlaakCM]

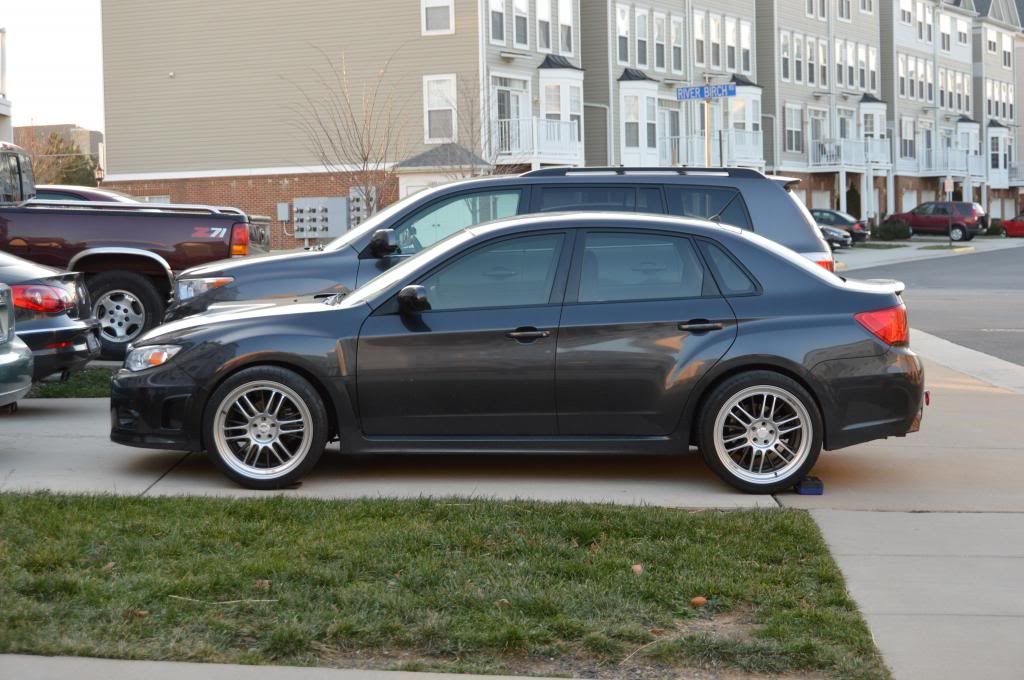

Teaser shot for summer!!

[JPolen01]

For a second I thought you were going with the donk look. Then I realized they weren't actually on haha. Dude if you tackled that pitch stop by yourself, you can definitely do the up pipe and exhaust!

[FlaakCM]

I probably can. Just lack of ramps/stands and muscle.

[Jake]

I probably can. Just lack of ramps/stands and muscle.

I have at least seven jack stands in my garage. Call me maybe.

[FlaakCM]

I have at least seven jack stands in my garage. Call me maybe.

Haha. Thanks! I will if I ever get the exhaust.

[Kaan]

you can borrow an actual wrench and not use an adjustable if you want too

[FlaakCM]

you can borrow an actual wrench and not use an adjustable if you want too

Haha. It was a slight PITA as it is getting old and rusted. However, just haven't found a reason to pick up a set of wrenches yet

[Kaan]

its thursday, thats a good enough reason for me to pick up a set of wrenches.

[FlaakCM]

Haha
